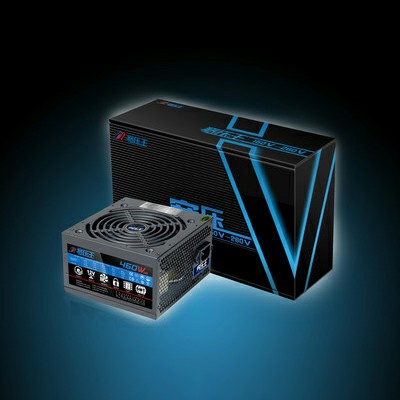

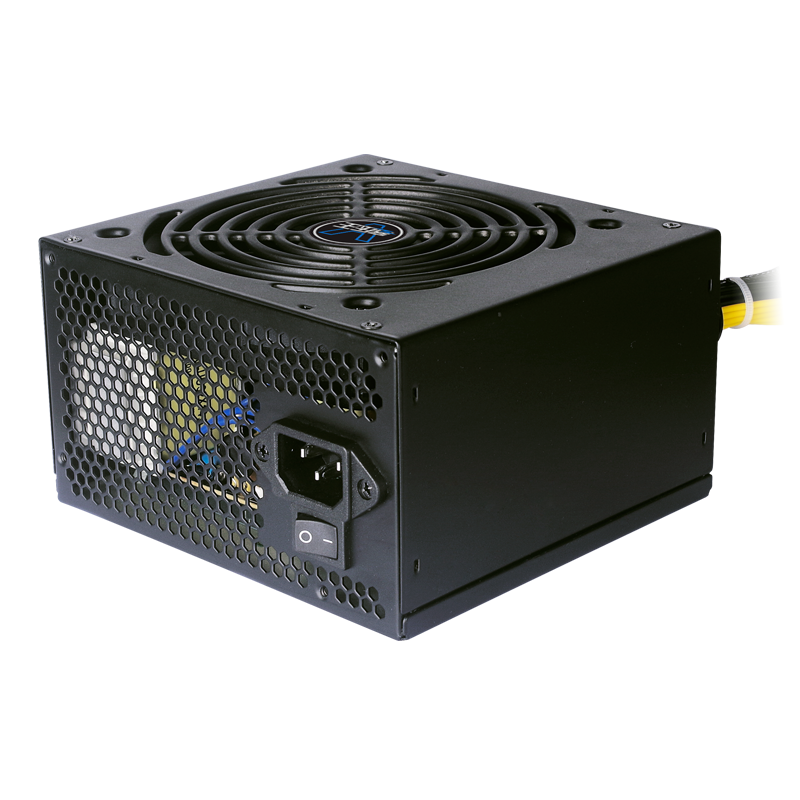

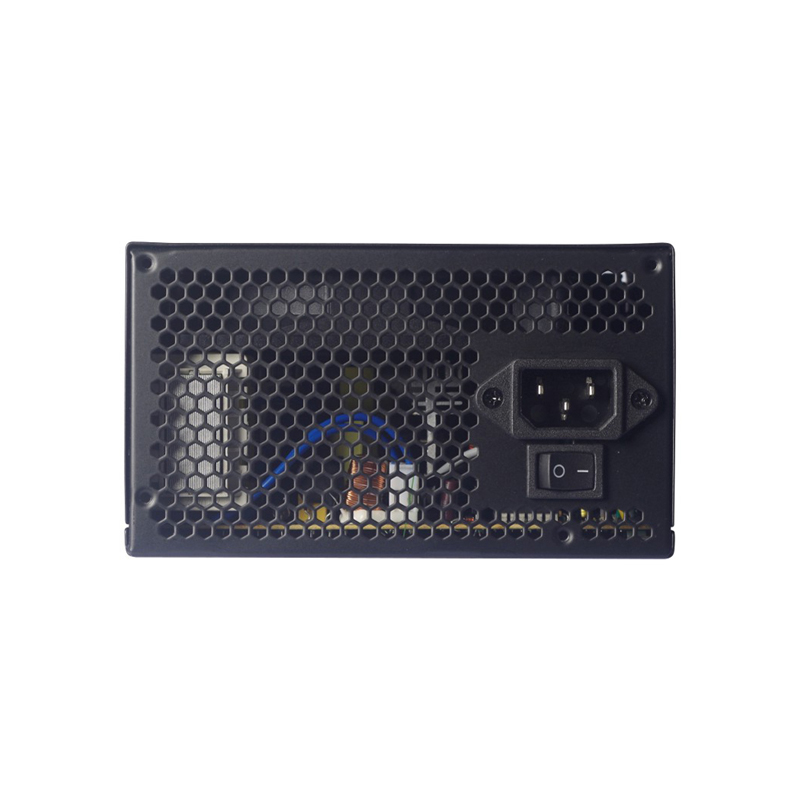

150V wide desktop power supply
Brand: Wide Pressure King
Model: 460
Applicable type: desktop computer
Power standard: ATX 12V 2.31
Applicable CPU range: multi-core
PFC type: passive PFC
Rated power: 250W-300W (W)
Certification: EMC, CB, CCC, ce, ROHS
Product weight: 1.6 (KG)

Maximum power 460W


1. 150V-260V wide voltage input: ultra-low voltage start, compatible with all power grids in the country, and can completely replace voltage stabilizers;

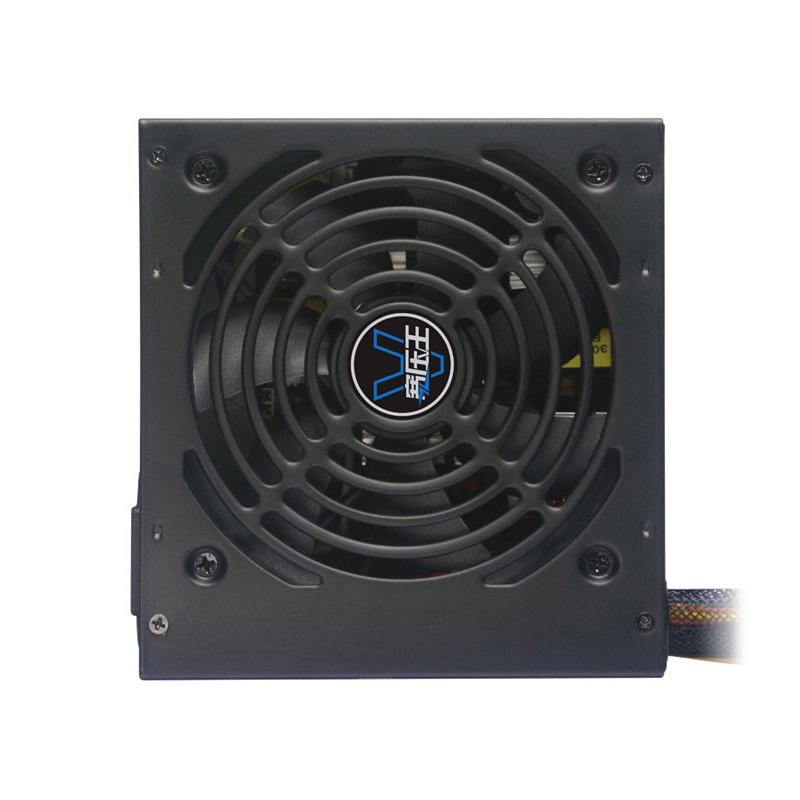

2. Magic static-silent system: adopts intelligent temperature control + ultra-quiet bearing fan, the noise is less than 16db; hang up at night to get rid of the annoying buzzing;

3. Use high-quality SMT patch technology to produce to ensure consistent quality;

4. Thickened Yahei case, comprehensive radiation protection and deformation prevention;

5. Using high efficiency and energy saving IC, standby power consumption is less than 1W;

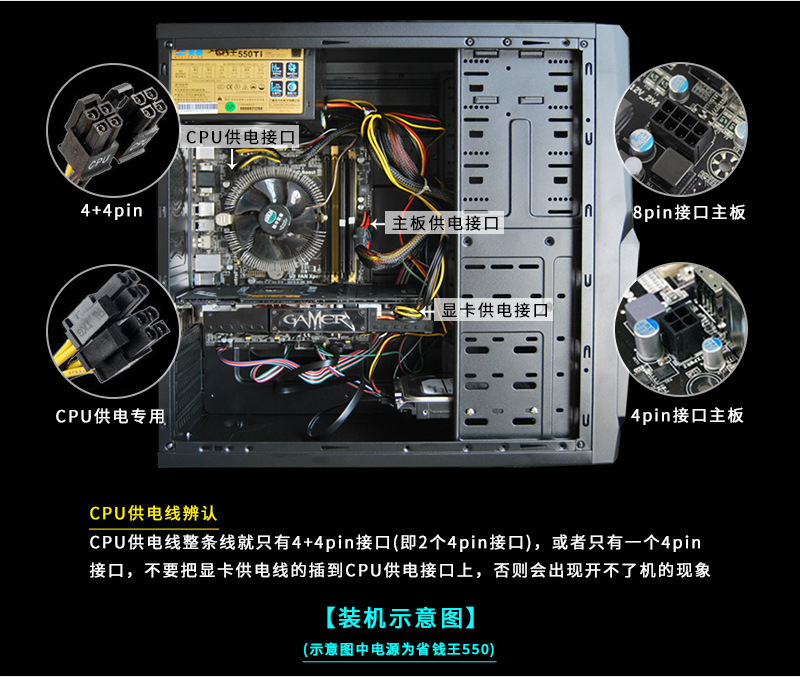

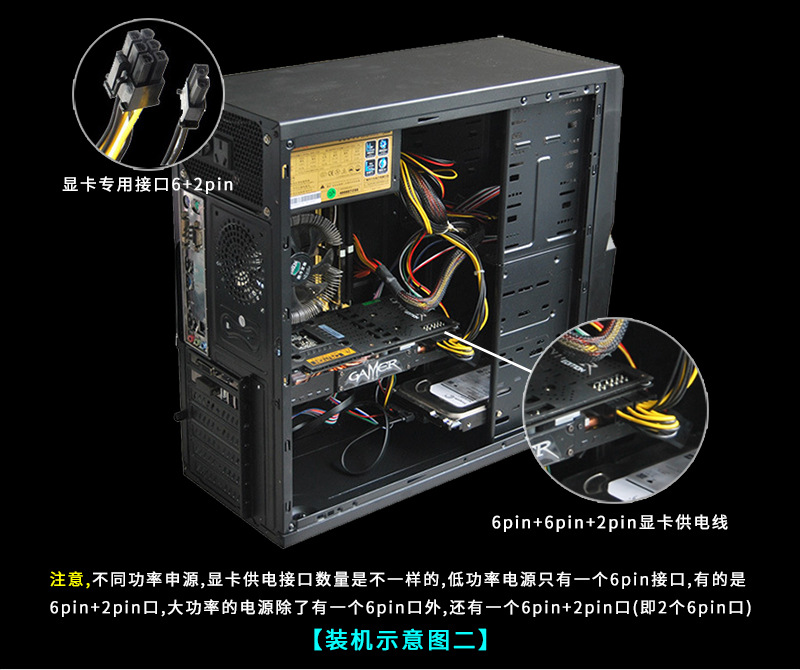

6. It has a super 12V output power and a unique 6P interface to meet the power requirements of multi-core CPU + independent graphics card;

7. Professional computer power supply manufacturer for more than 20 years, with almost perfect quality;

8. It has a superior service system of 1-year replacement, 3-year warranty, nationwide warranty, and zero waiting for after-sales service.


Version modelLWP-523A
AC inputInput voltage 150V-260V
Performance parameterThe output voltage+5V+3.3V+12V-12V+5VSB
Maximum current18.0A14.0A16.0A0.5A2.0A
Maximum power460W

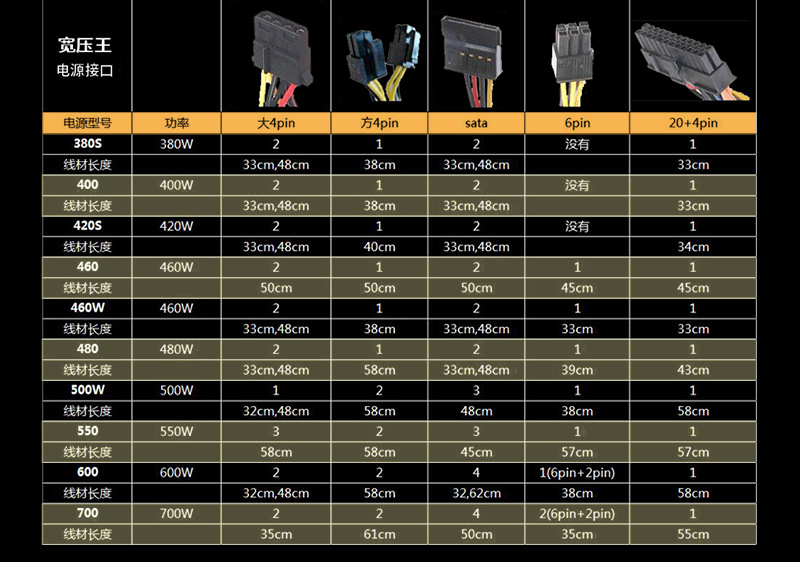

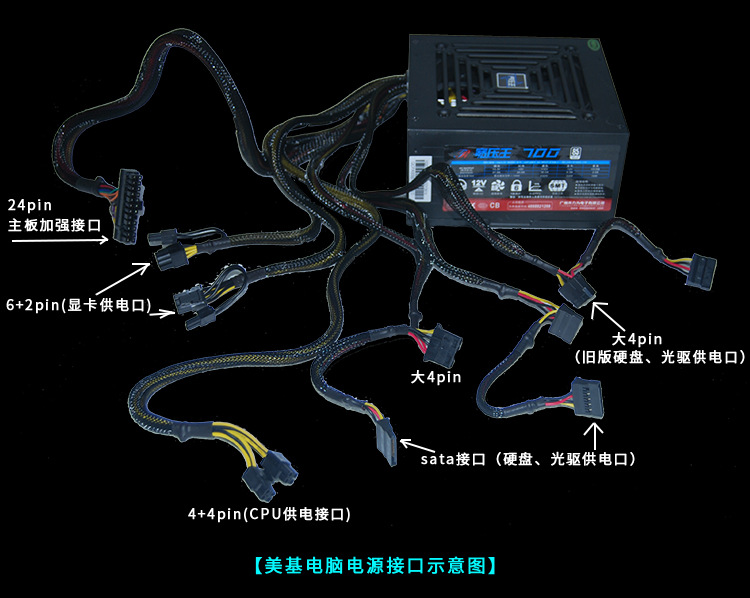

Wireinterface20+4Pin大4Pin方4P方 6PSATA

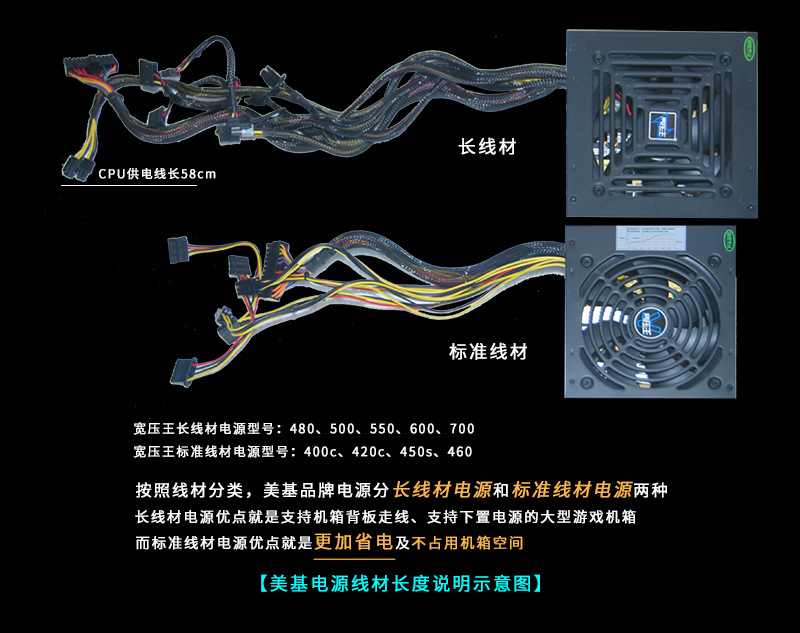

Line length450mm500mm500mm450mm500mm
Product Features150V-270V wide input, enhanced 12V output, intelligent temperature control fan, energy saving IC
safety certificateCCC (China Compulsory Certification), CE
Electromagnetic CompatibilityElectromagnetic compatibility national standard B level test qualified
Harmonic suppressionMeet the requirements of GB17625.1-98 about harmonic current suppression
